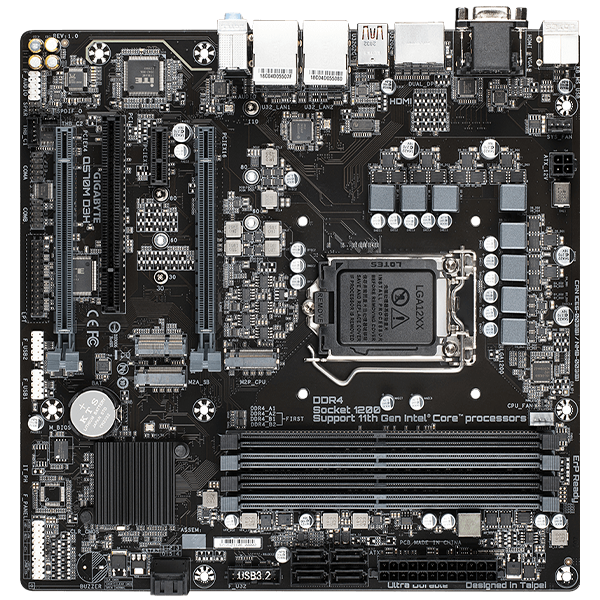

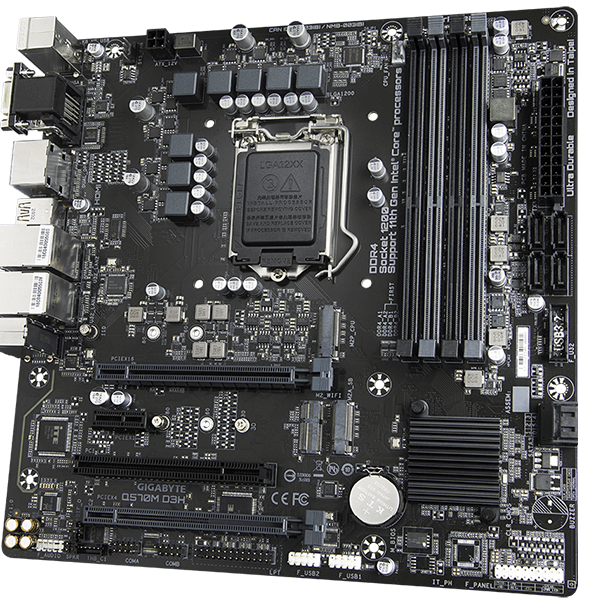

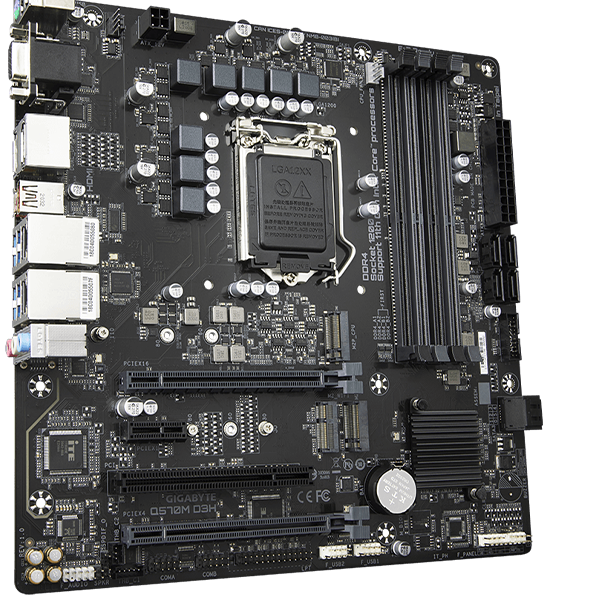

Gigabyte Q570M D3H DDR4 Micro ATX Intel Motherboard

POWER 6+2 Phases Digital Power Design Power Architecture Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading. Digital PWM Controller to deliver appropriate voltage to the CPU. Direct 6+2 Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU. All-solid capacitors to improve transient response and minimize oscillation. 4-pin Solid Pin CPU Power Connector. PERFORMANCE Smart Fan 6 XMP 4600+ PCIe 4.0 Hardware Design Hi-End Audio Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. Headers & Sensors 2 PWM/DC Fan Headers 4 Internal Temperature Sensors Cooling Features High Current Support Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection Precision Control Up to 7 temperature/fan speed control points for precise fan curve Dual Curve Mode Slope/Stair dual mode for different user scenario Fan Stop Fan can stop completely below users’ specified temperature point CONNECTIVITY 2X PCIe 4.0/3.0 M.2 Slots Dual Intel GbE LAN Dual PCIe 4.0/3.0 x4 M.2 Connectors GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential. * PCIe 4.0 support varies by processor installed, refer product spec for further details. ULTRA DURABLE Solid Pin Q-Flash Plus Anti-Sulfur Solid Pin Power Connectors Q570 motherboards feature solid plated ATX 4 pin power connectors to offer a stable power supply during CPU overloading. Solid Pin Power connector advantages Larger contact area for electricity
