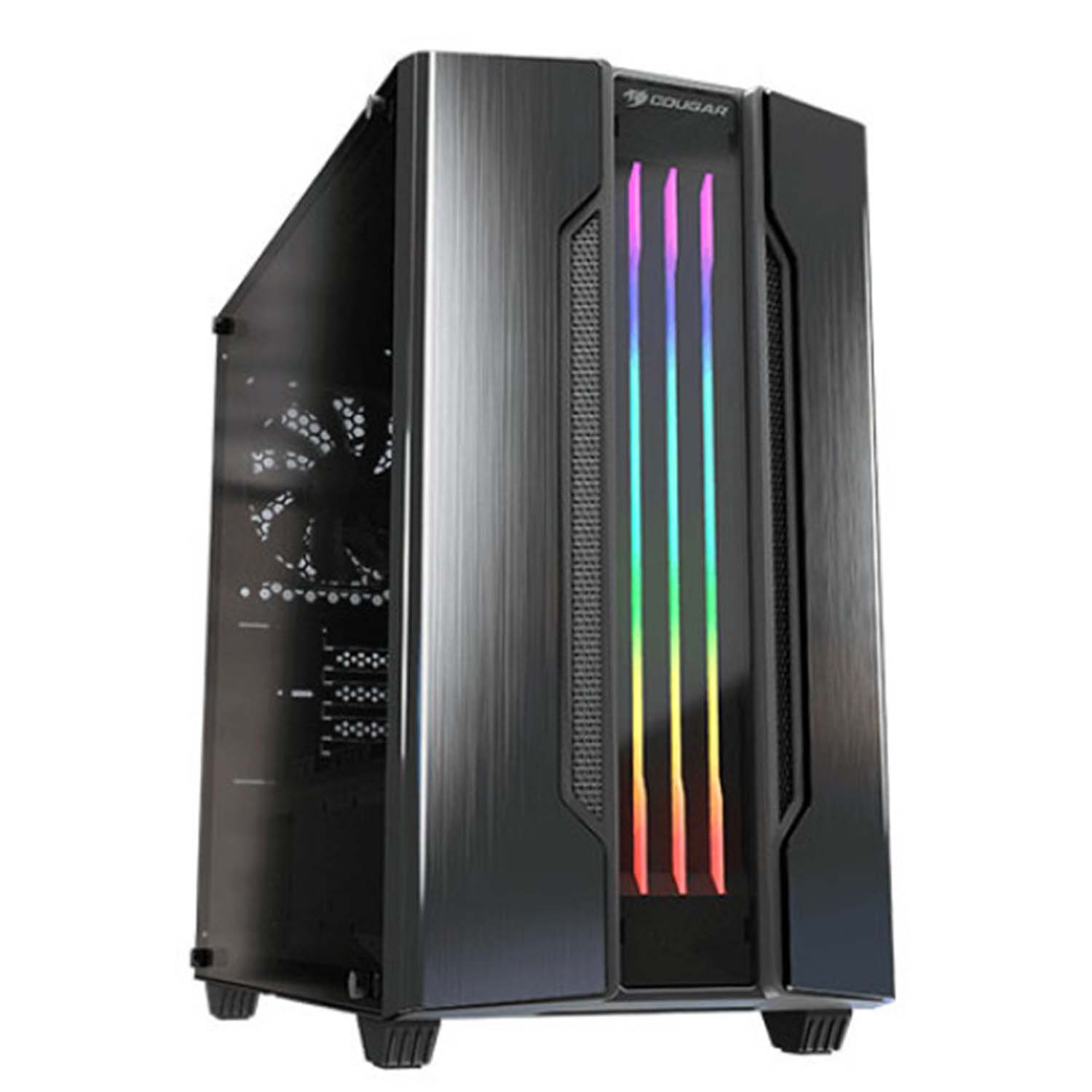

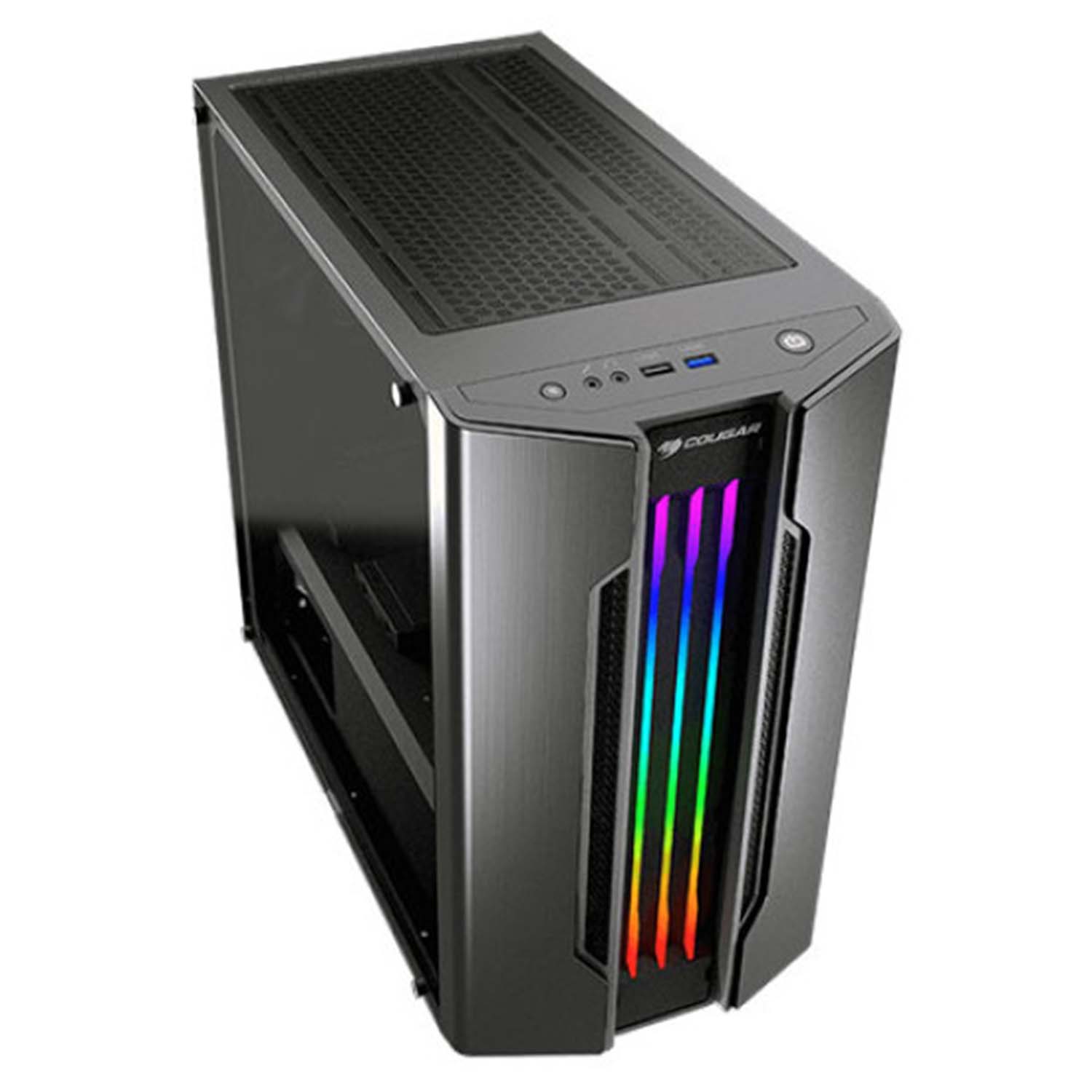

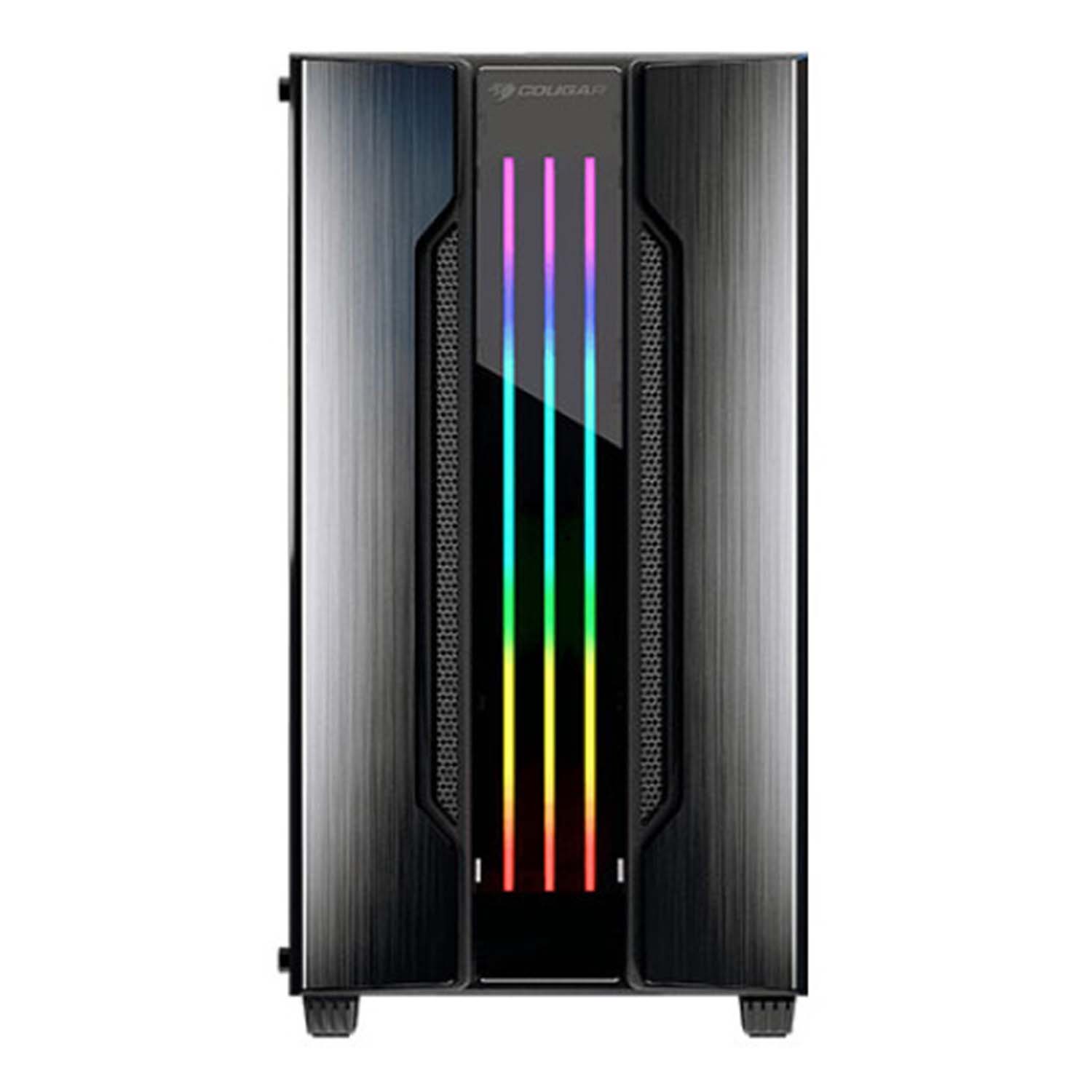

Cougar Gemini M ARGB Mini Tower Gaming Case (CGR-5TMBG)


Case Form Factor : Mini Tower
Motherboard Type : Mini ITX / Micro ATX
Dimensions (WxHxD)
210 x 423 x 400 (mm)
8.27 x 16.65 x 15.75 (in)
I/O Panel : USB3.0x1, USB2.0 x 1, Mic x 1 / Audio x 1, RGB Control Button
3.5″ Drive Bay : 2
2.5″ Drive Bay : 2+2 (converted from 3.5″ drive bays) / (2 SSD trays included)
Expansion Slots : 4
Cooling Fan Support
Front 140mm x 2 / 120mm x 3
Top 140mm x 2 / 120mm x 2
Rear 120mm x 1 (pre-installed)
Maximum Number of Fans : 6 Max.
Water Cooling Support
Front 280mm / 240mm /140mm /120mm
Top 240mm / 140mm / 120mm
( Max. Component Height on Motherboard is 40mm )
Rear 120mm
Max. Graphics Card Length : 330 (mm) / 12.99 (in)
(Horizontal graphics card slots are compatible with RTX 3090/3080/3070.)
Max. CPU Cooler Height : 175 (mm) / 6.89 (in)
PSU : Standard ATX PS2
Max. PSU length : 160 (mm) / 6.3 (in)
Onboard Lighting System : Trelux Lighting with Addressable RGB LEDs and Dynamic Lighting Effects in the Front Panel
Cable Management : Yes

Compare

Gigabyte Cougar Case Gemini M ITX (New) Mini-ITX, Compact Cube Design, Mesh Front Panel for Optimal Airflow, Tempered Glass Side Panel, Supports up to 3 Fans, 2x 120mm Front, 1x 120mm Rear Fan, Supports up to 240mm Front Radiator, GPU Clearance up to 330mm, CPU Cooler Height up to 160mm, PSU Length up to 180mm, 2x USB 3.0 Ports, 1x Audio In/Out, Tool-Free Design for Easy Assembly, Compatible with Mini-ITX Motherboards, Sleek Black Finish.

The COUGAR Gemini M RGB Mini-Tower Case is a compact yet powerful chassis designed for gamers and PC enthusiasts seeking a blend of style and performance. Its elegant brushed metal-like front panel is complemented by COUGAR’s exclusive Trelux integrated RGB lighting system, offering 14 dynamic lighting effects controllable via the front panel or synchronized with major motherboard RGB systems like ASUS Aura Sync, Gigabyte RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome Sync.

Despite its compact size, the Gemini M doesn’t compromise on component support. It accommodates Mini ITX and Micro ATX motherboards, supports graphics cards up to 330mm in length, and CPU coolers up to 175mm in height. The case offers extensive cooling options with support for up to six fans and three water cooling radiators, including a front radiator up to 280mm.

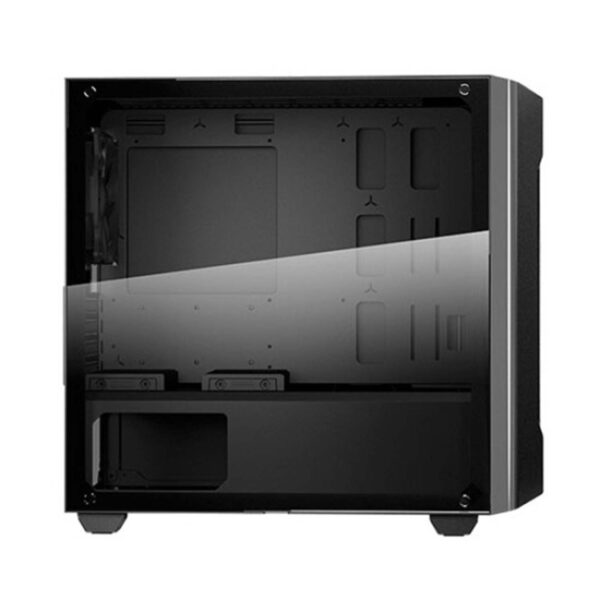

A full-sized tempered glass side panel provides a clear view of your build, while the internal layout ensures efficient cable management. Storage options include two 3.5″ HDD bays and two 2.5″ SSD bays, providing ample space for your data needs
